EV Series Volume/Expression Pedals

Our new EV Series of Expression Pedal products combine high-quality expression pedal and analog volume into one top-quality unit. The expression pedal jack was designed to work perfectly with all Fractal Audio Systems products—and many 3rd party devices as well. Unlike most expression pedals it has a true linear response with planetary gearing and a long, smooth “throw”. Each EV pedal also serves as an analog volume pedal, with separate IN and OUT jacks connected to an audio-taper pot. They feature a sturdy cast metal housing, comfortable non-slip rubber tread, and are available in two sizes: the full-sized EV-1 and the compact-sized EV-2.

Ultimate Expression Pedal plus Analog Volume

Every EV series expression pedal is perfect for use with all Fractal Audio Systems products and many third-party devices. The 100K pot and planetary gearing create a truly linear response, so the position of the pedal corresponds comfortably to sound changes without the need for finicky footwork. The long pedal “travel” gives you greater musical control over your sound, whether you’re adjusting levels, mix, effect parameters, or multiple things at once. When you’re not using it as an expression pedal, your EV series pedal also works as a top-quality 500K high-impedance analog volume pedal. It is perfect for use with passive pickups and designed never to cause “tone suck”. No other pedals give you the same killer combination of features, quality, and value as the Fractal Audio EV Series.

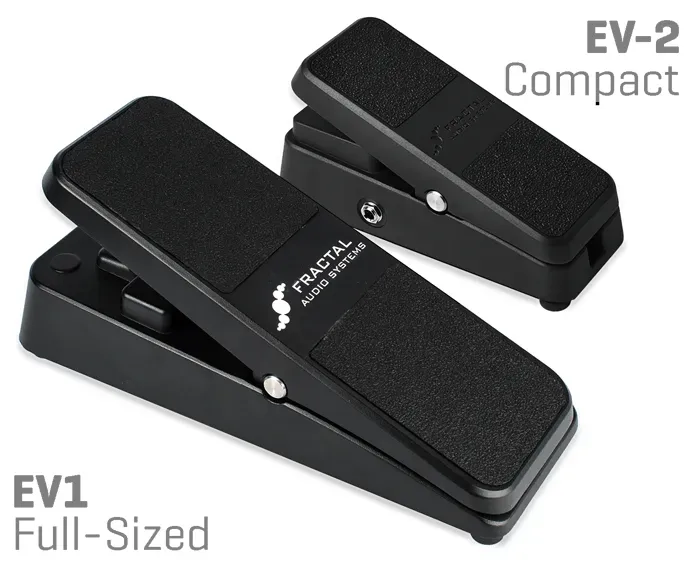

Available in Two Sizes

The EV-1 Expression Pedal is a full-sized pedal measuring 11.4 inches in length and weighing 3.7 lbs. It is very comfortable to use and feels perfectly familiar when compared to the classic volume pedals guitar players have known for decades. Its smooth long “throw” provides the utmost in expressive control. The EV-2 Expression Pedal is a compact-sized pedal, measuring 7.5 inches in length and weighing only 1.9 lbs. It was designed for those who want a full-featured pedal in a smaller size. Whether you want to build the ultimate fly-rig or just conserve pedalboard real estate, the EV-2 is the perfect choice when a full-sized expression or volume pedal doesn’t fit the bill.

EV-1 Expression Pedal / Volume Pedal
EV-2 Expression Pedal / Volume Pedal

EV-1 Expression/Volume Pedal Product Guide

PDF File—Feb 17, 2015
EV-1 Product Guide
